XIHO CATL 4000 Cycles 104Ah Lithium Iron Phosphate Batteries 3.2v Lifepo4 Prismatic Battery Cell

Key Features：

1. Exceptional Cycle Life for Long-Term Value

The CATL 3.2V 104Ah Prismatic Lithium Ion Battery is engineered for superior durability, boasting a cycle life of ≥4,000 cycles under standard charge/discharge tests with 300±20kgf clamping force until capacity drops to 80% SOH. This ensures reliable long-term performance and greatly reduced total cost of ownership for energy storage, electric vehicle and industrial backup power applications.

2. Wide Operating Temperature Range for Robust Performance

Designed for resilience in diverse global environments, the CATL 3.2V 104Ah Prismatic Lithium Ion Battery supports a charging temperature range of -20℃ to 55℃ and a discharging range of -30℃ to 55℃. This capability ensures stable power delivery and consistent capacity retention under extreme cold and high-temperature climatic conditions.

3. High Energy Density & Low Internal Resistance

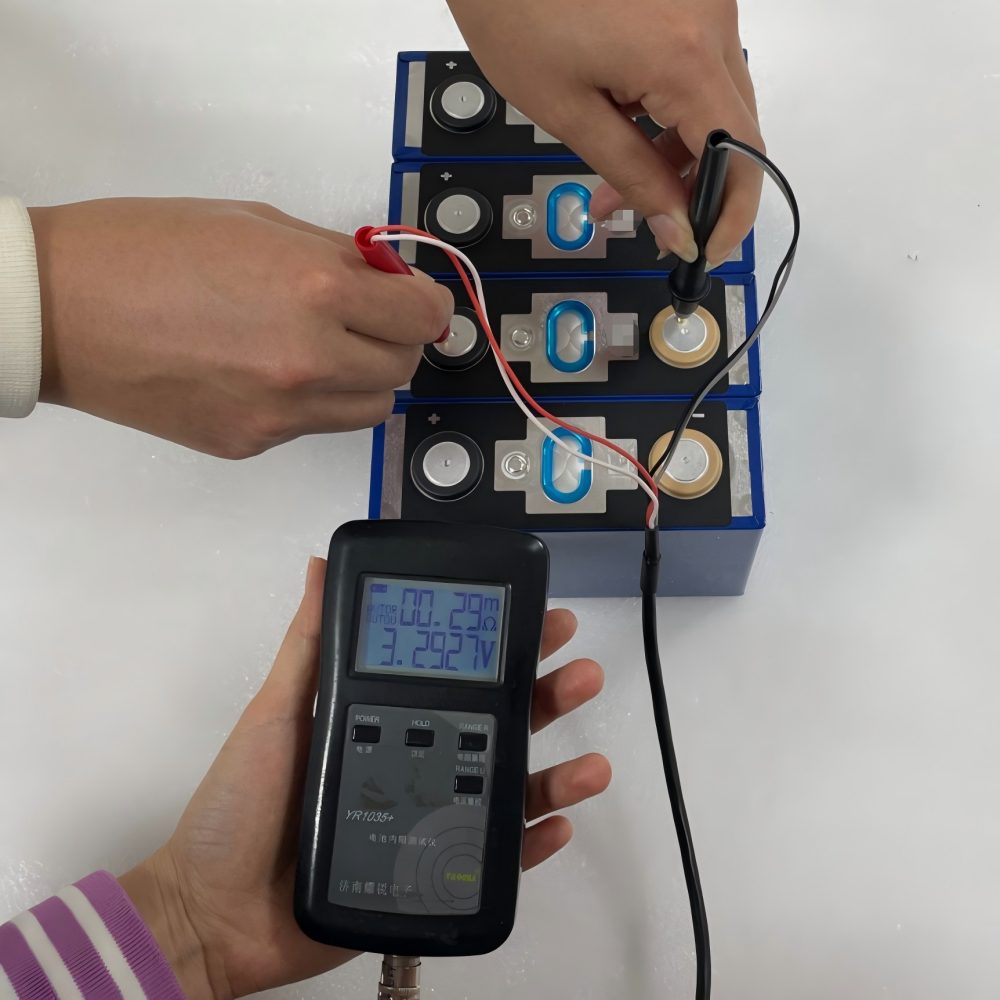

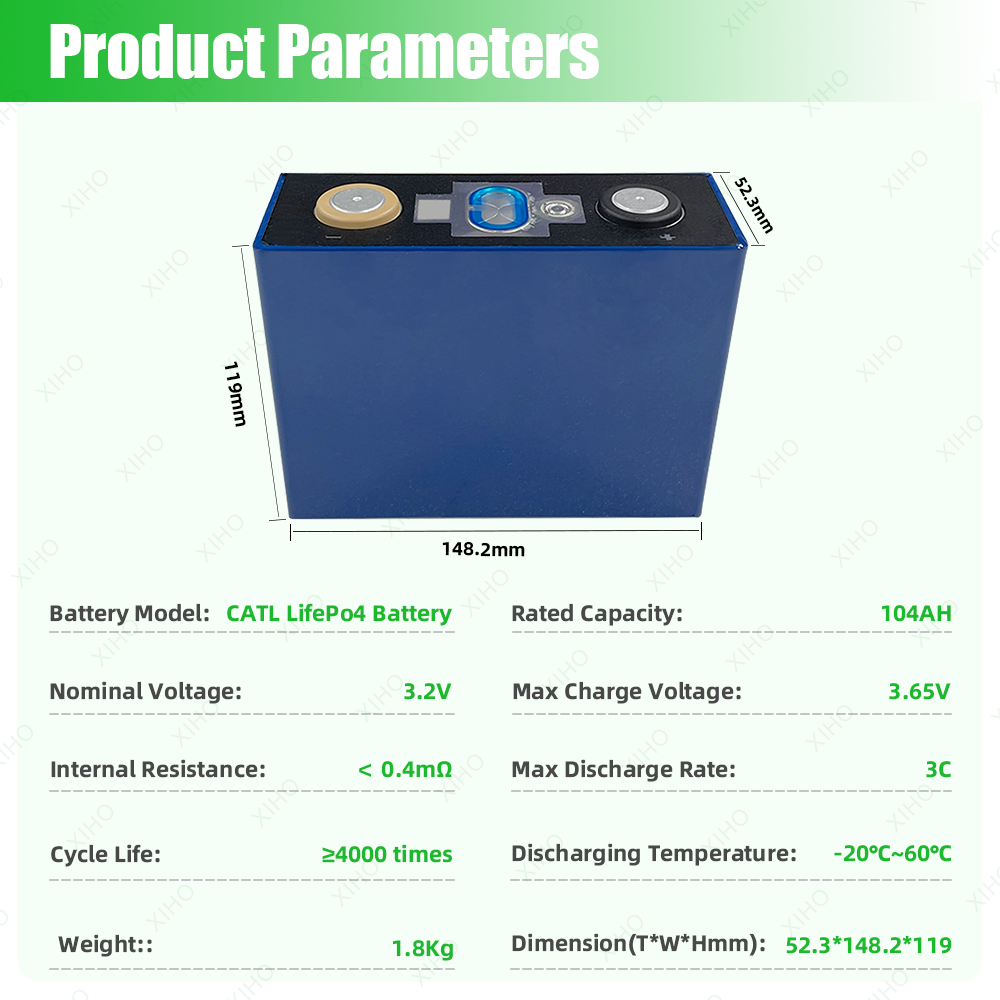

Featuring a nominal capacity of 104Ah @1C (up to 106Ah @1/3C), a market-leading 184.9Wh/kg gravimetric energy density and an ultra-low internal resistance of ≤0.5mΩ @1KHz, the CATL 3.2V 104Ah Prismatic Lithium Ion Battery delivers highly efficient power output and minimal energy loss. This combination is critical for applications requiring compact modular design and high-power performance.

4. Enhanced Safety with Comprehensive BMS Protection

Application:
1. Large-Scale Energy Storage Systems (ESS):

The CATL 3.2V 104Ah Prismatic Lithium Ion Battery is ideal for grid-level and commercial & industrial energy storage due to their exceptional longevity (≥4,000 cycles to 80% SOH) and ultra-low monthly self-discharge rate (≤3%). These characteristics ensure long-term operational reliability, reduced levelized cost of storage (LCOS), and stable performance for applications like peak shaving, renewable energy (solar/wind) integration, frequency regulation, and backup power systems.

2. Electric Commercial Vehicles (e.g., Buses, Trucks):

Featuring an ultra-wide operating temperature range (Charging: -20℃ to 55℃, Discharging: -30℃ to 55℃) and robust low-temperature performance (≥78Ah capacity retention at -20℃, 1C discharge), the CATL 3.2V 104Ah Prismatic Lithium Ion Battery provides dependable power output and extended driving range for electric logistics vehicles, passenger cars, and light utility vehicles in diverse and extreme climates. Its 520A peak discharge current delivers strong power performance for vehicle acceleration and hill climbing, while the 104Ah nominal capacity supports flexible pack configuration.

3. Telecommunication Base Station Backup Power:

The industry-leading 184.9Wh/kg high energy density and 104Ah standard capacity of the CATL 3.2V 104Ah Prismatic Lithium Ion Battery allow for compact, high-capacity backup power solutions in space-constrained telecom shelters and outdoor base stations. Mandatory matching with a dedicated Battery Management System (BMS) ensures precise real-time monitoring and multi-level protection (over-charge, over-discharge, overheating, thermal runaway), which is critical for the 24/7 high reliability and safety demands of global communication infrastructure.

4. Industrial Machinery & Specialized Electric Vehicles (e.g., Forklifts, AGVs):

With full compliance to stringent national safety standards (GB/T31484-2015, GB/T31485-2015, GB/T31486-2015), support for 520A peak discharge current and 2C continuous discharge, the CATL 3.2V 104Ah Prismatic Lithium Ion Battery is well-suited for demanding industrial applications. It can reliably handle frequent high-power charge-discharge cycles, mechanical vibrations, and rugged operational environments typical of electric forklifts, Automated Guided Vehicles (AGVs), and other heavy-duty industrial equipment.

Customization capabilities:

• Our Services: OEM/ODM and Customized Solutions

• We provide customized lithium ion battery solutions to meet your specific application needs​

Why XIHO is your BEST Partner?

FAQ

Q:Can I have samples to test? And what is lead time for sample order?
A:Yes, we can supply samples, the lead time for samples is 7-10 days. And buyers pay for sample cost and shipping cost.
Q:Do you provide after-sales serive?
A:Yes, We offer 5 years warranty for lifepo4 battery, and 1 years for Nmc battery, increase the cost to 5-10 years. For damaged due to non-human factors, we will refund or send new battery for replacement after providing pictures or videos for evidence.
Q:What is your company's advantage?
A:We only supply high level quality of lithium battery and we gurantee on-time shipment, we also provide excellent after-sales service.
Q:Do you accept OEM/ODM?
A:Yes, it is avaliable.
Q:Are the batteries come with bus bars + nuts?

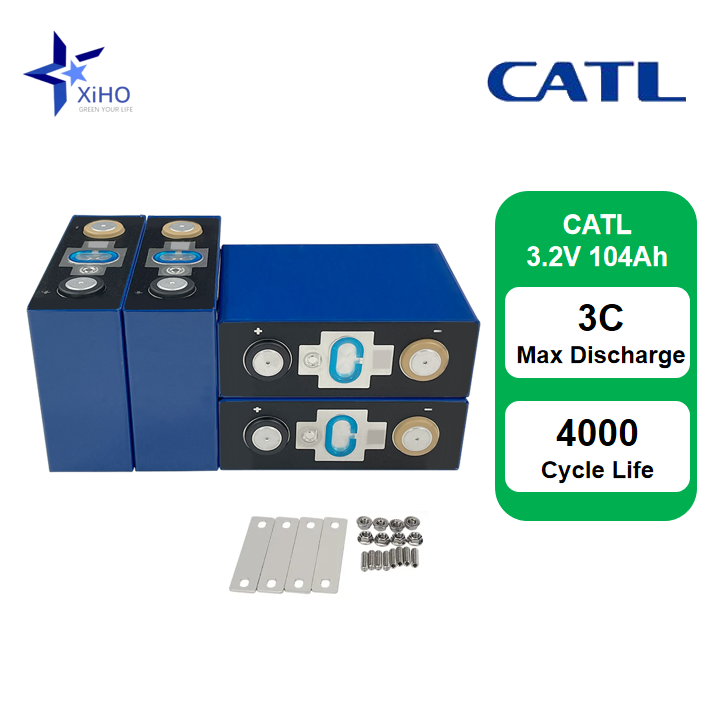

A:This price includes busbars and nuts. Each cell will be provided with one set of busbars and nuts (e.g., if you purchase 4 cells, we will deliver 4 cells with 4 busbars and 8 nuts). Should you require further details, please feel free to contact us directly.
Q:Are you battery real capacity?
A:All of our battery cells with Grade A, 100% new and real capacity.
Q:Are you a factory or a trading company?
A:We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.
Q:What kind of certificates do you have?
A:We can provide CE, ROHS, UL, FCC, IEC, MSDS, UN38.3 & etc. if your need.
