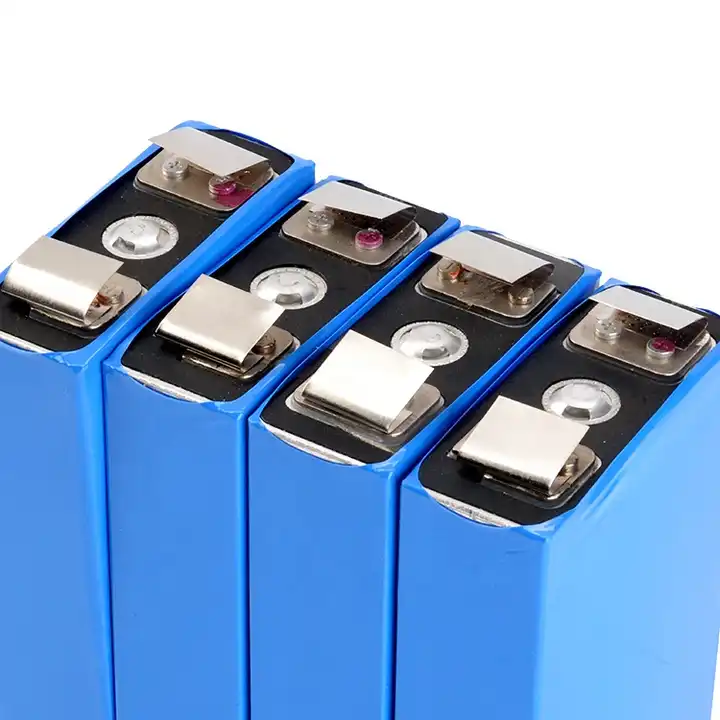

Lishen 20Ah 3.2V LiFePo4 Prismatic Rechargeable Lithium Ion Battery

Description

LISHEN 3.2V 20Ah Rechargeable LiFePO4 Battery Cell

LISHEN 3.2V 20Ah lifepo4 battery, popular lifepo4 prismatic cells for widely application

Automated

Manufacturer
Automated production
Prodcut consistency

Stability

Low IR
High CR
Discharge Steadily

Ultra-Safe

Explosion-proof
No leakage

Cycle Life

Ultra-long life cycle

Product Type

Product Name: LISHEN 20Ah 3.2V Prismatic LiFePo4 Rechargeable Battery
Specification: LISHEN-LFP20

Technical Parameters

Items	Parameter
Nominal Capacity	20Ah
Average Voltage	3.2V
Internal Resistance（Ac. 1kHz）	≤0.95mΩ
Work Voltage	2.5V-3.65V
Recommended SOC Window	10%~90%
Charging Temperature	0~55℃
Discharging Temperature	-20~55℃
25℃ Cycle Life	≥2000 times
Weigh	0.6±0.05kg

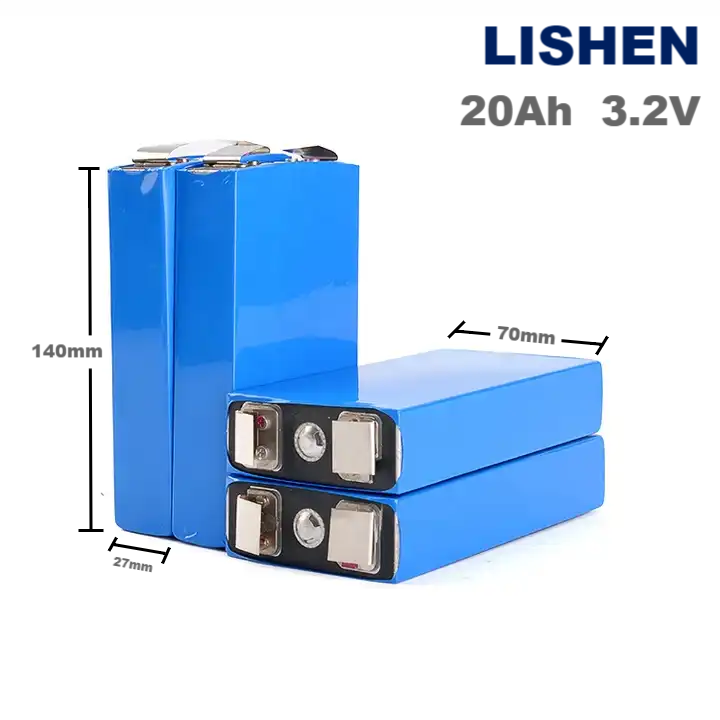

Dimensions	*T27W70H140mm*
Application	Solar Energy Storage Systems/Power Tools/Home Appliances,etc.

Cautions of Battery Operation

1.Please read the instructions carefully and pay attention to the marks on the surface of battery before use.
2.During operation, please keep the cell away from heat source, fire source. Never beat, drop or shock the cell.
3.Do not directly solder the cell or pierce it with a nail or other sharp object.
4.Do not turn over battery. Keep it from strike, throw, tread or bending.
5.Do not make battery short-circuited, in order to avoid from danger incurring or battery damage.
6.Discarded battery should be well disposed. Do not throw it into the fire or water.

FAQ

Q1.Do you have any MOQ limit for lithium battery?
A: No MOQ.
Q2. Are the batteries come with bus bars+bolts?
A: Yes, it comes with. We can Laser weld screw stud or nut stud per your needs. Normally, one battery will come with 1pc busbar and 2pcs bolts.
Q3.Do you have the used batteries?
A: Sorry, no, our batteries are all brand new.
Q4. How to proceed an order for lithium ion battery?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Can we sign a secrecy agreement if we wanna build a long-term business relationship?
A: Sure, we respect clients requirements, will bring more benefit to you.
Q6:Which shipping method you usually take?
A: Train/Sea DDP, Express, We can also ship with your own shipping agent.
Q7: How do I know whether you've shipped my order or not?
A: Tracking No.will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo of the order and let you know the detail shipment information.
