You’re packed for a weekend getaway, keys in hand—only to turn the ignition and hear a faint click. Dashboard lights flicker, the engine won’t crank, and your plans stall. Nearly always, this breakdown traces back to one critical factor: your car battery’s voltage.
Understanding the volts needed to start a car is essential for every driver, from daily commuters to RV owners. This guide breaks down key voltage thresholds, system basics, testing steps, and red flags to avoid being stranded.
At a Glance: Critical Voltage Thresholds
-
12.6V–12.8V: Fully charged, optimal health
-
12.0V–12.4V: Partially discharged, reliable starting
-
Below 11.9V: Critical, high no-start risk
-
Running voltage: 13.5V–14.5V (healthy alternator)
Battery Voltage Fundamentals
Car battery voltage is the electrical pressure driving current through your vehicle’s systems. Most modern cars use a 12V nominal system, but real-world voltage fluctuates with engine state. Your starting system has three core parts: the battery (cranking power), starter motor (turns the engine), and alternator (powers electronics + recharges the battery post-start).
Exact Volts Needed to Start Your Car
The bare minimum to crank most cars is 12V, but a healthy fully charged battery (lead-acid or lithium car battery) should hit 12.6V at rest. Here’s the breakdown:
| Resting Voltage | Charge % | Start Reliability | Recommended Action |
|---|---|---|---|
| 12.6V+ | 100% | Perfect | None |
| 12.4V–12.5V | 75% | Reliable | Recheck soon |
| 12.1V–12.3V | 50% | Unreliable | Recharge immediately |
| ≤11.9V | <25% | Very Low | Jump start/Replace |
During cranking, a temporary drop to ~10V is normal. Any lower signals a weak or failing battery.
Normal Running Voltage
Once the engine starts, the alternator takes over as the primary power source. Normal running voltage is 13.5V–14.5V, which recharges the battery while powering accessories. Readings below 13V while driving signal a faulty alternator or charging system issue.
Why Voltage Dips During Cranking
Starting requires an instant burst of high power to overcome engine compression and friction. This heavy load causes a brief voltage dip. A healthy battery recovers quickly; a weak one drops too far to crank the engine.
How to Safely Test Battery Voltage
Steps with a digital multimeter:
- Set the meter to DC voltage
- Connect red probe to the positive terminal, black to negative
- Read the display. A healthy battery reads ~12.6V; below 12.4V needs recharging.
Common Causes of Voltage Loss & Red Flags

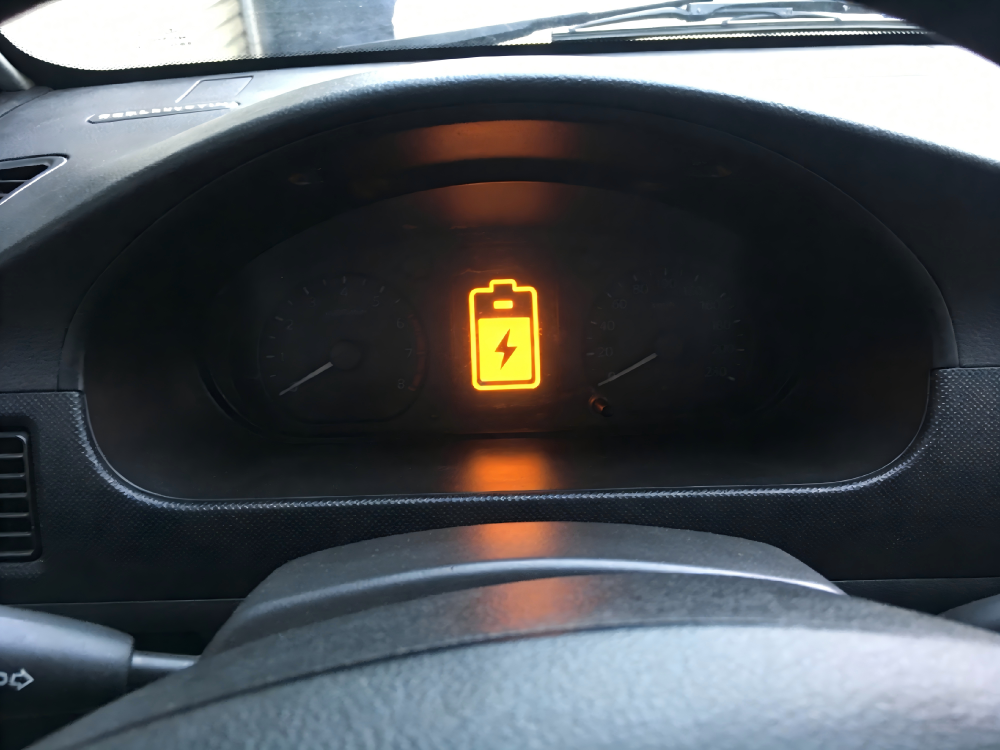

Red flags of failure: Sluggish cranking, dim lights, illuminated battery warning light, rotten egg smell near the battery, or age over 3 years.
Proactive Tips to Avoid No-Starts
Shop Lithium Car Batteries →
Final Takeaways
A healthy car battery registers 12.6V at rest, 13.5V–14.5V while running, and doesn’t drop below 10V during cranking. Readings below 12V signal a compromised battery. Monitor voltage and catch red flags early to avoid unexpected breakdowns.
