How powerful for the EVE 46950 cylindrical cells?

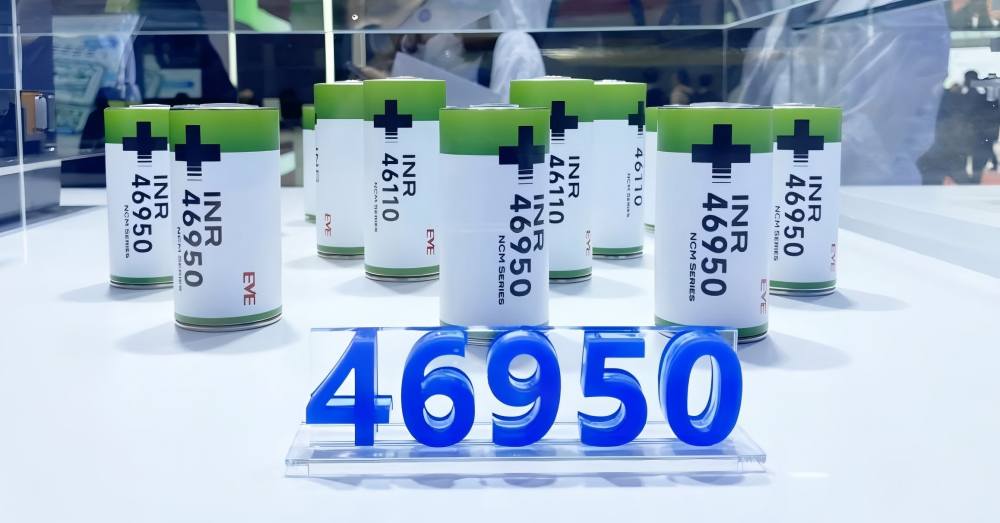

The EVE46950 is a 46-series large cylindrical lithium-ion battery from EVE Lithium Energy. Its name directly reflects its dimensions: 46mm in diameter and 95mm in height. Following Tesla's 4680 battery, it is a major product from a domestic battery manufacturer in this technology line.

Its core advantages can be summarized as follows:
1. Extremely High Energy Density

High volumetric efficiency: The large cylindrical structure (especially when combined with full-tab technology) allows for greater space utilization within the battery pack, reducing the proportion of inactive materials (such as brackets and connectors).

High capacity: The capacity of a single battery cell is enormous, reportedly reaching 30-40Ah or even higher. This means fewer cells are required to manufacture a battery pack of the same capacity, further simplifying the system architecture and improving overall energy density.

This translates to longer range for electric vehicles, making it a key technology for addressing range anxiety.

2. Excellent Fast Charging Performance

Full-tab (or tab-less) Technology: This is one of the core technical highlights of the 46950 battery. Traditional batteries have only two tabs (conducting electrodes leading from the positive and negative current collectors), resulting in a long current path, high internal resistance, and significant heat generation during fast charging.

Full-tab technology transforms the entire current collector into a "tab," shortening the current path and significantly reducing internal resistance.

Benefits:

Extremely fast charging: Supports 4C and even higher fast charging rates, theoretically capable of charging the battery from 10% to 80% in just 15 minutes.

Low heat and low internal resistance mean less heat loss during charging and discharging, slower battery temperature rise, and improved safety.

3. Top-tier safety and reliability

The inherent advantages of a cylindrical structure: Of all container shapes, cylinders offer the strongest pressure resistance and excellent structural stability, effectively suppressing the expansion and contraction of internal materials during battery charging and discharging.

Directional pressure relief design: Large cylindrical batteries typically feature explosion-proof valves (safety valves) at the bottom or top. When internal pressure rises abnormally, these valves preferentially rupture in a predetermined direction to release pressure, preventing a violent explosion and significantly improving safety.

High consistency requirements: While the manufacturing process is extremely demanding, once high-standard production is achieved, large cylindrical cells exhibit excellent consistency, which is crucial for the long life and stable operation of the battery pack.

4. Excellent Cost Control Potential (Cost Reduction Potential)

Standardization and Scalability: The 46 series size is becoming a standard, facilitating large-scale production and technology diffusion, reducing the costs of production equipment and materials.
High energy density reduces system costs: Fewer cells means fewer connectors, wiring harnesses, management system channels, and structural components, reducing the overall system cost of the battery pack .
Strong Material System Compatibility: 46950 is compatible with a variety of chemistries, including high-nickel ternary and lithium iron phosphate (LFP). LFP, in particular, can further reduce costs and improve safety while maintaining high performance.

5. Powerful Power Output

Thanks to its full-tab technology and low internal resistance, the 46950 battery not only charges quickly but also delivers exceptionally high discharge power. This is beneficial for improving the acceleration performance of electric vehicles and meeting the demands of energy storage systems for instantaneous high power output.

Summary and application scenarios
Summary of the EVE46950's Advantages:

It perfectly combines high energy density, ultra-fast charging, high safety, low-cost potential, and high power output, meeting virtually all the core market demands for next-generation power batteries.

Main Application Scenarios:

1. High-end electric vehicles: This is its core application area, providing the core power for long-range, ultra-fast charging vehicles.

2. Energy Storage Systems (ESS): This is particularly suitable for large-scale commercial and industrial energy storage, as well as home energy storage, where space, safety, and cycle life are critical.

3. Other high-end applications: These include electric VTOL vehicles (eVTOL), large electric ships, heavy-duty trucks, and other areas with extremely high energy and power density requirements.
